FD1000R33HE3KBPSA1

In Stock: 4,473

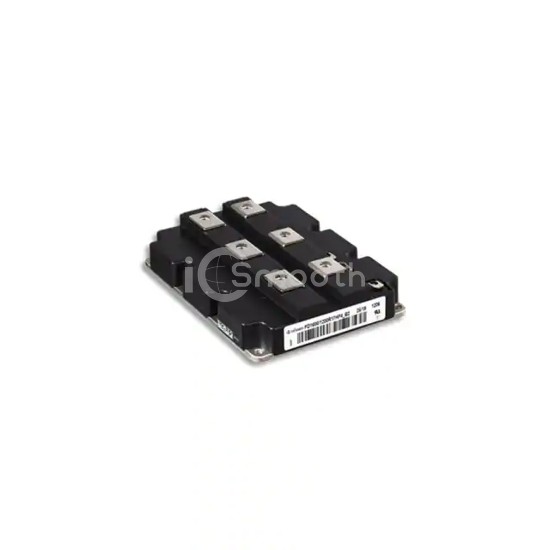

FD1000R33HE3KBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FD1000R33HE3KBPSA1 Infineon Technologies
FD1000R33HE3KBPSA1

Infineon Technologies

IGBT MODULE 3300V 1000A

FD1000R33HE3KBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 3300V 1000A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 1000 A.

Datasheet Request a Quote

In Stock: 4,473

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationDual Brake Chopper
Voltage - Collector Emitter Breakdown (Max)3300 V
Current - Collector (Ic) (Max)1000 A
Power - Max11500 W
Vce(on) (Max) @ Vge, Ic3.1V @ 15V, 1000A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce190 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
