Name: F475R12KS4BOSA1
Brand: Infineon Technologies
SKU: F475R12KS4BOSA1
Availability: InStock

REF: F475R12KS4BOSA1 Infineon Technologies

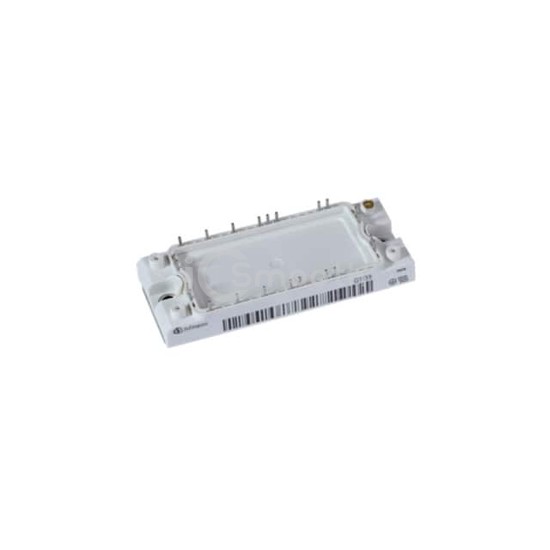

F475R12KS4BOSA1

IGBT MOD 1200V 100A 500W

F475R12KS4BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 100A 500W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 4,371

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
IGBT Type	-
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	100 A
Power - Max	500 W
Vce(on) (Max) @ Vge, Ic	3.75V @ 15V, 75A
Current - Collector Cutoff (Max)	5 mA

Input Capacitance (Cies) @ Vce	5.1 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
