F475R06W1E3BOMA1

In Stock: 8,104

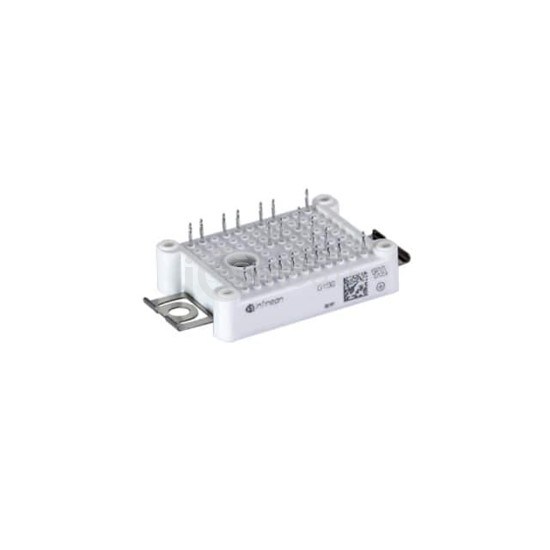

F475R06W1E3BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: F475R06W1E3BOMA1 Infineon Technologies
F475R06W1E3BOMA1

Infineon Technologies

IGBT MOD 600V 100A 275W

F475R06W1E3BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 600V 100A 275W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 8,104

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)100 A
Power - Max275 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 75A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce4.6 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
