F3L75R12W1H3B11BPSA1

In Stock: 8,220

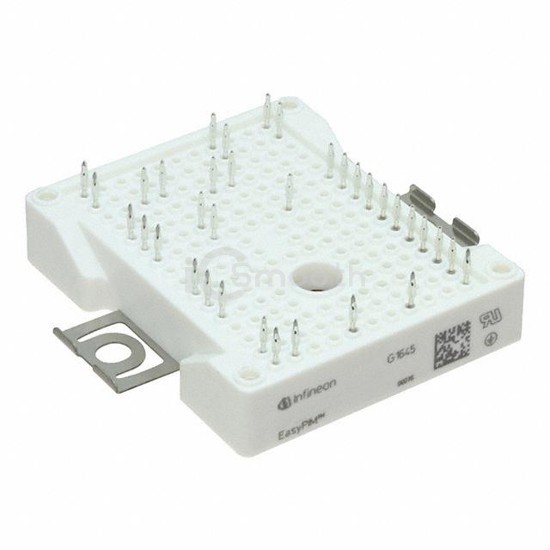

F3L75R12W1H3B11BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: F3L75R12W1H3B11BPSA1 Infineon Technologies
F3L75R12W1H3B11BPSA1

Infineon Technologies

IGBT MOD 1200V 45A 275W

F3L75R12W1H3B11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 45A 275W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 45 A.

Datasheet Request a Quote

In Stock: 8,220

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationSingle Chopper
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)45 A
Power - Max275 W
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 30A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce4.4 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
