F3L25R12W1T4B27BOMA1

In Stock: 9

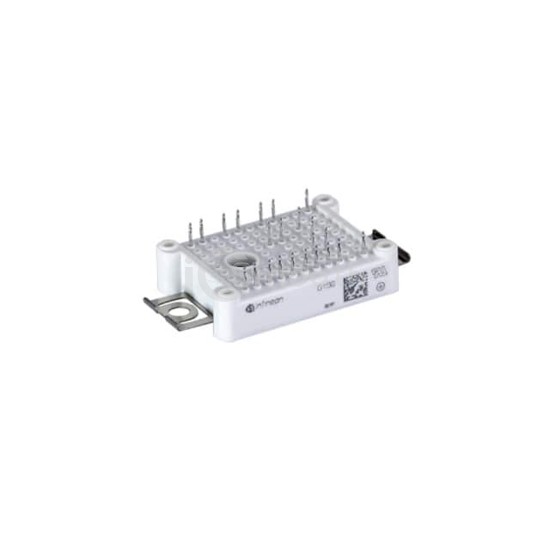

F3L25R12W1T4B27BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: F3L25R12W1T4B27BOMA1 Infineon Technologies
F3L25R12W1T4B27BOMA1

Infineon Technologies

MODULE IGBT 1200V EASY1B-2

F3L25R12W1T4B27BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. MODULE IGBT 1200V EASY1B-2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 45 A.

Datasheet Request a Quote

In Stock: 9

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)45 A
Power - Max215 W
Vce(on) (Max) @ Vge, Ic2.25V @ 15V, 25A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce1.45 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY1B
