F3L200R12N2H3B47BPSA1

In Stock: 1,300

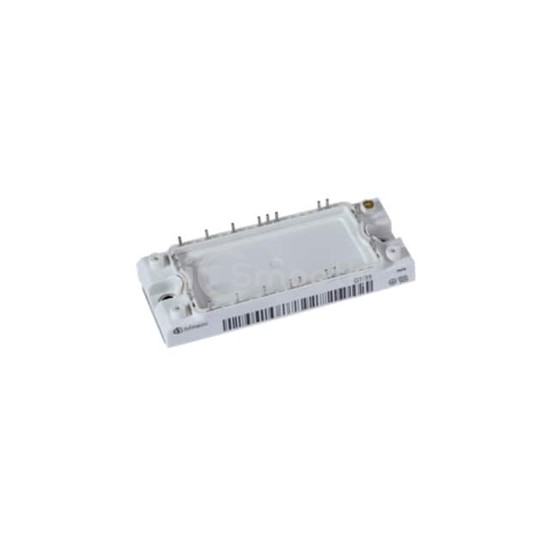

F3L200R12N2H3B47BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: F3L200R12N2H3B47BPSA1 Infineon Technologies
F3L200R12N2H3B47BPSA1

Infineon Technologies

IGBT MOD 1200V 200A 20MW ECONO

F3L200R12N2H3B47BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 200A 20MW ECONO. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 1,300

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
IGBT Type-
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)200 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 150A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-ECONO2-8
