ETZ1100N16P70HPSA1

In Stock: 6,815

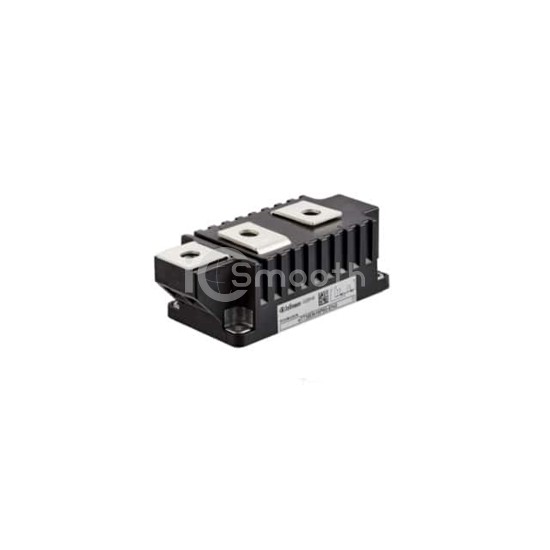

ETZ1100N16P70HPSA1 - Infineon Technologies - Thyristors - SCRs
REF: ETZ1100N16P70HPSA1 Infineon Technologies
ETZ1100N16P70HPSA1

Infineon Technologies

SCR 1.6KV 1000A PB70ECO-1

ETZ1100N16P70HPSA1 is a Thyristors - SCRs manufactured by Infineon Technologies. SCR 1.6KV 1000A PB70ECO-1. Key specifications: mounting type Chassis Mount, operating temperature 135°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 6,815

Specifications

15 parameters
Product StatusObsolete
Voltage - Off State1.6 kV
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)250 mA
Voltage - On State (Vtm) (Max)1.52 V
Current - On State (It (AV)) (Max)1051 A
Current - On State (It (RMS)) (Max)1000 A
Current - Hold (Ih) (Max)500 mA
Current - Off State (Max)-
Current - Non Rep. Surge 50, 60Hz (Itsm)33600A @ 50Hz
SCR TypeStandard Recovery
Operating Temperature135°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageBG-PB70ECO-1
