ETD540N22P60HPSA1

In Stock: 2

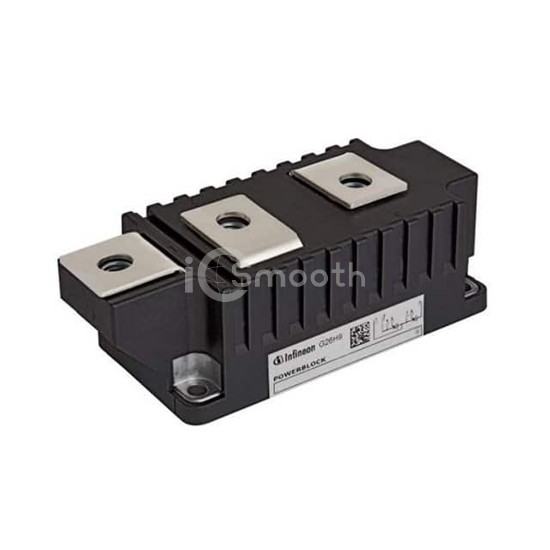

ETD540N22P60HPSA1 - Infineon Technologies - Thyristors - SCRs - Modules
REF: ETD540N22P60HPSA1 Infineon Technologies
ETD540N22P60HPSA1

Infineon Technologies

THYR / DIODE MODULE DK

ETD540N22P60HPSA1 is a Thyristors - SCRs - Modules manufactured by Infineon Technologies. THYR / DIODE MODULE DK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 135°C (TC), package / case Module.

Datasheet Request a Quote

In Stock: 2

Tiered Pricing USD
1+ $222.3200 —
10+ $211.7500 -5% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)542 A
Current - On State (It (RMS)) (Max)700 A
Voltage - Gate Trigger (Vgt) (Max)2.2 V
Current - Gate Trigger (Igt) (Max)250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)16300A @ 50Hz
Current - Hold (Ih) (Max)300 mA
Operating Temperature-40°C ~ 135°C (TC)
Mounting TypeChassis Mount
Package / CaseModule
