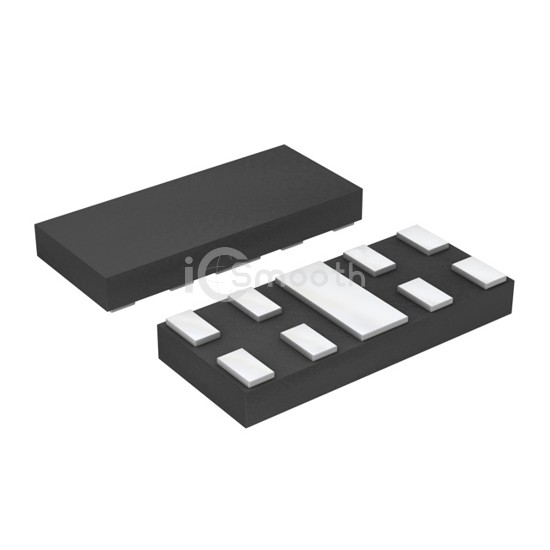

Name: ESD5V3U4UHDMIE6327XTSA1
Brand: Infineon Technologies
SKU: ESD5V3U4UHDMIE6327XTSA1
Availability: InStock

REF: ESD5V3U4UHDMIE6327XTSA1 Infineon Technologies

ESD5V3U4UHDMIE6327XTSA1

Infineon Technologies

TVS DIODE 5.3VWM 28VC TSLP-9-1

ESD5V3U4UHDMIE6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.3VWM 28VC TSLP-9-1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 9-XFDFN.

Datasheet Request a Quote

In Stock: 5,574

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.3V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	28V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Ethernet, HDMI
Capacitance @ Frequency	0.4pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	9-XFDFN
Supplier Device Package	PG-TSLP-9-1
