Name: ESD5V0H1U-02LS E6327
Brand: Infineon Technologies
SKU: ESD5V0H1U-02LS E6327
Availability: InStock

REF: ESD5V0H1U-02LS E6327 Infineon Technologies

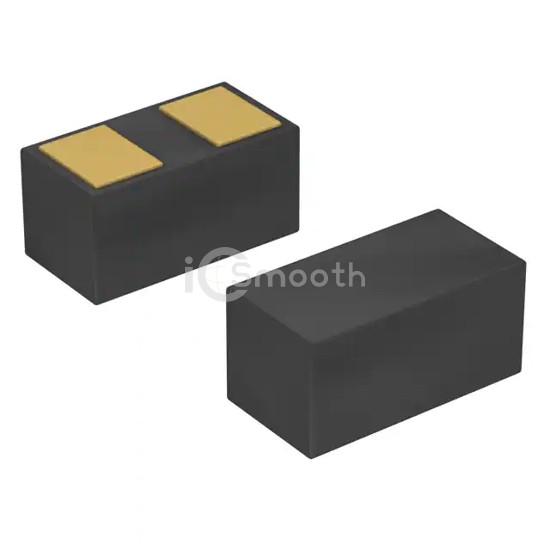

ESD5V0H1U-02LS E6327

TVS DIODE 5VWM 40VC TSSLP-2

ESD5V0H1U-02LS E6327 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5VWM 40VC TSSLP-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 4,829

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	40V (Typ)
Current - Peak Pulse (10/1000µs)	-

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.27pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-1
