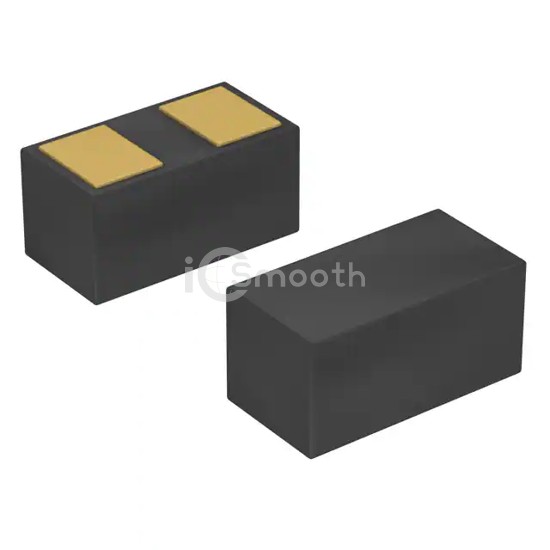

Name: ESD3V3U1U-02LS E6327
Brand: Infineon Technologies
SKU: ESD3V3U1U-02LS E6327
Availability: InStock

REF: ESD3V3U1U-02LS E6327 Infineon Technologies

ESD3V3U1U-02LS E6327

TVS DIODE 3.3VWM 28VC TSSLP-2-1

ESD3V3U1U-02LS E6327 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 3.3VWM 28VC TSSLP-2-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 2,122

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5V
Voltage - Clamping (Max) @ Ipp	28V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Ethernet, HDMI
Capacitance @ Frequency	0.4pF @ 1GHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-1
