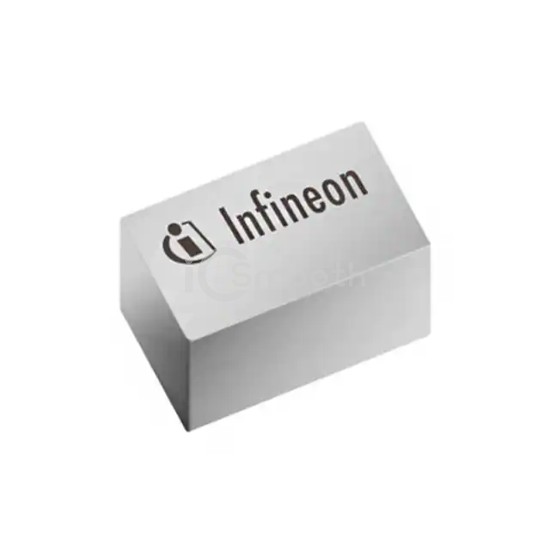

Name: ESD253B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: ESD253B1W0201E6327XTSA1
Price: 0.14 USD
Availability: InStock

REF: ESD253B1W0201E6327XTSA1 Infineon Technologies

ESD253B1W0201E6327XTSA1

Infineon Technologies

TVS DIODE 24VWM 30VC WLL-2-3

ESD253B1W0201E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 24VWM 30VC WLL-2-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 12,978

Tiered Pricing USD

1+ $0.1400 —

10+ $0.0990 -29%

100+ $0.0410 -71%

500+ $0.0390 -72%

1,000+ $0.0370 -74%

2,000+ $0.0305 -78% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	30V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	90W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	2.8pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-WLL-2-3
