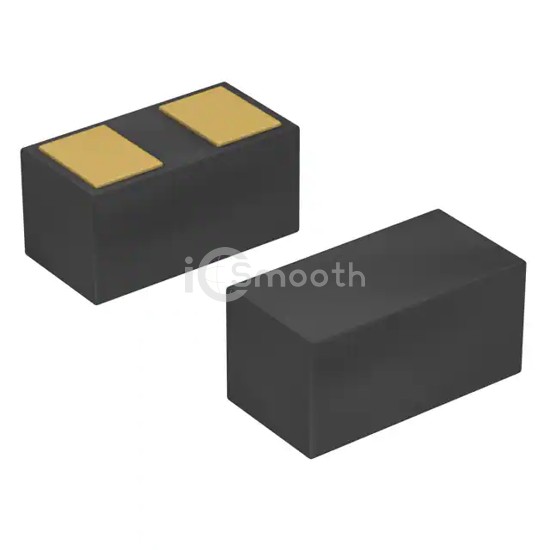

Name: ESD24VL1B-02LS E6327
Brand: Infineon Technologies
SKU: ESD24VL1B-02LS E6327
Availability: InStock

REF: ESD24VL1B-02LS E6327 Infineon Technologies

ESD24VL1B-02LS E6327

TVS DIODE 24VWM 55VC TSSLP-2-1

ESD24VL1B-02LS E6327 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 24VWM 55VC TSSLP-2-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 9,230

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	24.3V
Voltage - Clamping (Max) @ Ipp	55V (Typ)
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	2.5pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-1
