Name: ESD245B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: ESD245B1W0201E6327XTSA1
Price: 0.11 USD
Availability: InStock

REF: ESD245B1W0201E6327XTSA1 Infineon Technologies

ESD245B1W0201E6327XTSA1

Infineon Technologies

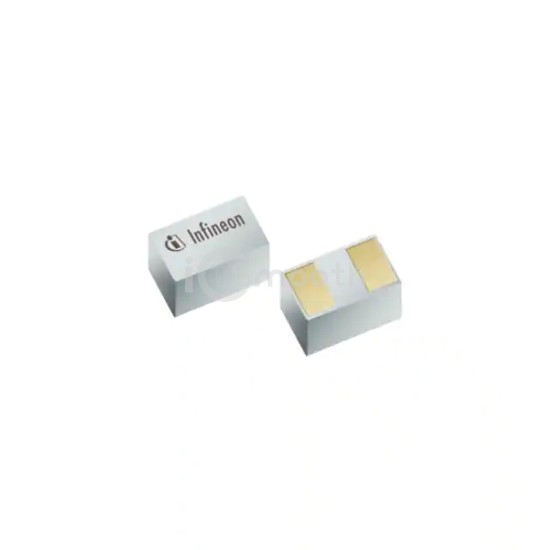

TVS DIODE 5.5VWM 7.5VC WLL-2-3

ESD245B1W0201E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.5VWM 7.5VC WLL-2-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 1,506

Tiered Pricing USD

1+ $0.1100 —

10+ $0.0670 -39%

100+ $0.0300 -73%

500+ $0.0280 -75%

1,000+ $0.0240 -78%

2,000+ $0.0235 -79%

5,000+ $0.0230 -79% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V
Voltage - Breakdown (Min)	-
Voltage - Clamping (Max) @ Ipp	7.5V
Current - Peak Pulse (10/1000µs)	5.5A (8/20µs)

Power - Peak Pulse	44W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	5.8pF @ 1GHz
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	WLL-2-3
