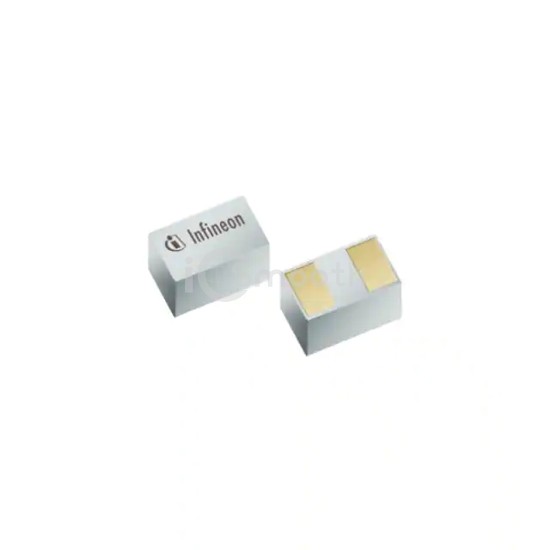

Name: ESD237B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: ESD237B1W0201E6327XTSA1
Price: 0.12 USD
Availability: InStock

REF: ESD237B1W0201E6327XTSA1 Infineon Technologies

ESD237B1W0201E6327XTSA1

Infineon Technologies

TVS DIODE 8VWM 17VC WLL-2-1

ESD237B1W0201E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 8VWM 17VC WLL-2-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 85°C, package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 25,299

Tiered Pricing USD

1+ $0.1200 —

10+ $0.0840 -30%

100+ $0.0360 -70%

500+ $0.0330 -73%

1,000+ $0.0280 -77%

2,000+ $0.0275 -77%

5,000+ $0.0270 -78% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	8V (Max)
Voltage - Breakdown (Min)	9V
Voltage - Clamping (Max) @ Ipp	17V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	42W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	7pF @ 1MHz
Operating Temperature	-55°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	WLL-2-1
