Name: ESD231B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: ESD231B1W0201E6327XTSA1
Price: 0.10 USD
Availability: InStock

REF: ESD231B1W0201E6327XTSA1 Infineon Technologies

ESD231B1W0201E6327XTSA1

Infineon Technologies

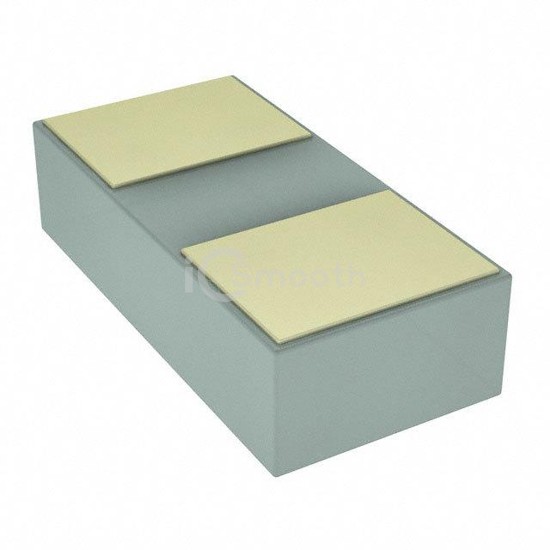

TVS DIODE 5.5VWM 10VC WLL-2-1

ESD231B1W0201E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.5VWM 10VC WLL-2-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 13,091

Tiered Pricing USD

1+ $0.1000 —

10+ $0.0610 -39%

100+ $0.0340 -66%

500+ $0.0320 -68%

1,000+ $0.0290 -71%

2,000+ $0.0285 -72%

5,000+ $0.0280 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.1V
Voltage - Clamping (Max) @ Ipp	10V (Typ)
Current - Peak Pulse (10/1000µs)	9A (8/20µs)

Power - Peak Pulse	132W
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	3.5pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	WLL-2-1
