Name: ESD218B102ELE6327XTMA1
Brand: Infineon Technologies
SKU: ESD218B102ELE6327XTMA1
Price: 0.08 USD
Availability: InStock

REF: ESD218B102ELE6327XTMA1 Infineon Technologies

ESD218B102ELE6327XTMA1

Infineon Technologies

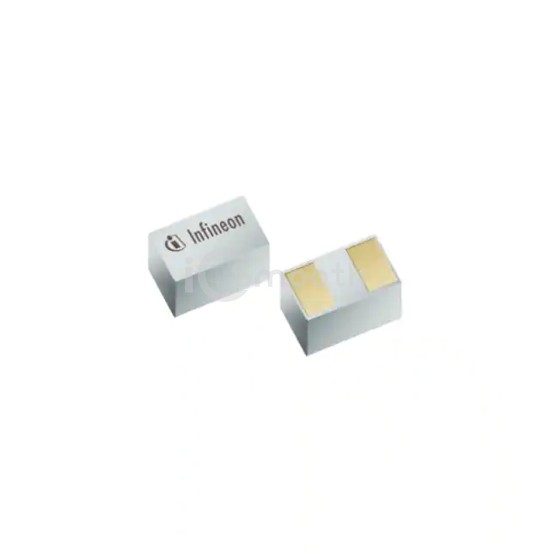

TVS DIODE 24VWM 44.5VC TSLP-2-20

ESD218B102ELE6327XTMA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 24VWM 44.5VC TSLP-2-20. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 15,000

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	24.3V
Voltage - Clamping (Max) @ Ipp	44.5V
Current - Peak Pulse (10/1000µs)	1.5A (8/20µs)

Power - Peak Pulse	67W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	3pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	PG-TSLP-2-20
