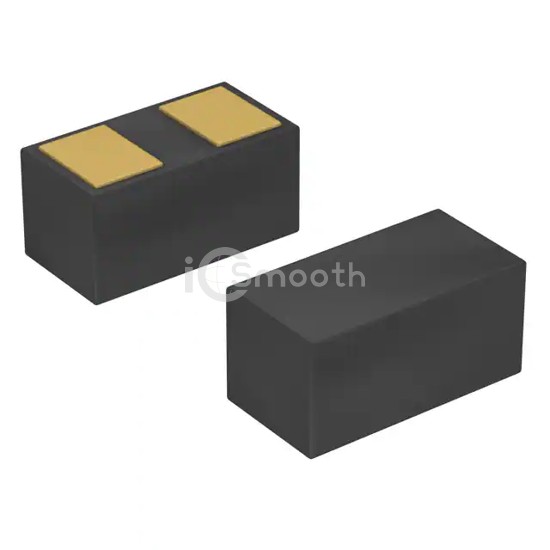

Name: ESD206B102ELSE6327XTSA1
Brand: Infineon Technologies
SKU: ESD206B102ELSE6327XTSA1
Availability: InStock

REF: ESD206B102ELSE6327XTSA1 Infineon Technologies

ESD206B102ELSE6327XTSA1

Infineon Technologies

TVS DIODE 5.5VWM 9.6VC TSSLP-2-3

ESD206B102ELSE6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.5VWM 9.6VC TSSLP-2-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 4,062

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6.1V
Voltage - Clamping (Max) @ Ipp	9.6V (Typ)
Current - Peak Pulse (10/1000µs)	6A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	12pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-3
