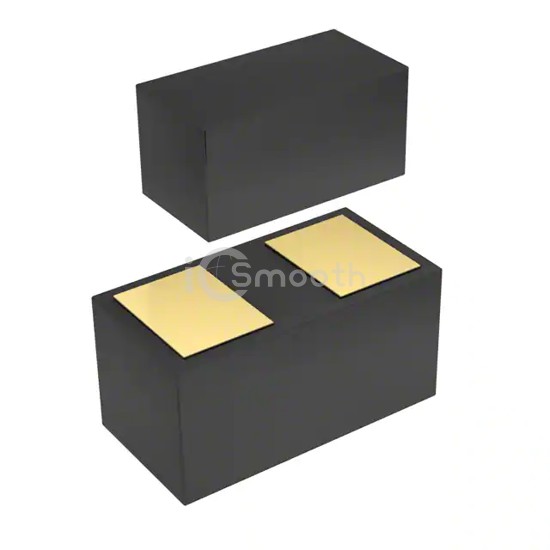

Name: ESD200B1CSP0201XTSA1
Brand: Infineon Technologies
SKU: ESD200B1CSP0201XTSA1
Price: 0.10 USD
Availability: InStock

REF: ESD200B1CSP0201XTSA1 Infineon Technologies

ESD200B1CSP0201XTSA1

Infineon Technologies

TVS DIODE 5.5VWM 13VC

ESD200B1CSP0201XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.5VWM 13VC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 2-SMD, No Lead.

Datasheet Request a Quote

In Stock: 250,548

Tiered Pricing USD

1+ $0.1000 —

10+ $0.0640 -36%

100+ $0.0260 -74%

500+ $0.0220 -78%

1,000+ $0.0190 -81%

2,000+ $0.0180 -82% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	13V (Typ)
Current - Peak Pulse (10/1000µs)	16A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	6.5pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Supplier Device Package	-
