Name: ESD145B1W01005E6327XTSA1
Brand: Infineon Technologies
SKU: ESD145B1W01005E6327XTSA1
Price: 0.12 USD
Availability: InStock

REF: ESD145B1W01005E6327XTSA1 Infineon Technologies

ESD145B1W01005E6327XTSA1

Infineon Technologies

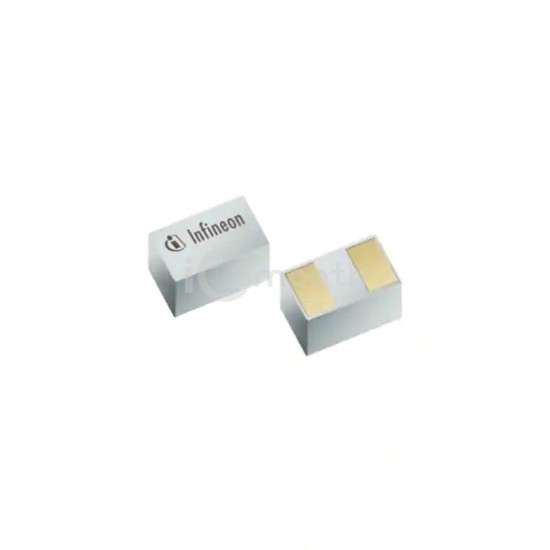

TVS DIODE 18VWM 5VC WLL-2-2

ESD145B1W01005E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 18VWM 5VC WLL-2-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 01005 (0402 Metric).

Datasheet Request a Quote

In Stock: 250

Tiered Pricing USD

1+ $0.1200 —

10+ $0.0820 -32%

100+ $0.0350 -71%

500+ $0.0330 -73%

1,000+ $0.0300 -75%

2,000+ $0.0295 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V (Max)
Voltage - Breakdown (Min)	18.5V
Voltage - Clamping (Max) @ Ipp	5V (Typ)
Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)

Power - Peak Pulse	21W
Power Line Protection	No
Applications	RF Antenna
Capacitance @ Frequency	0.2pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	01005 (0402 Metric)
Supplier Device Package	P/PG-WLL-2-2
