Name: ESD144B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: ESD144B1W0201E6327XTSA1
Price: 0.13 USD
Availability: InStock

REF: ESD144B1W0201E6327XTSA1 Infineon Technologies

ESD144B1W0201E6327XTSA1

Infineon Technologies

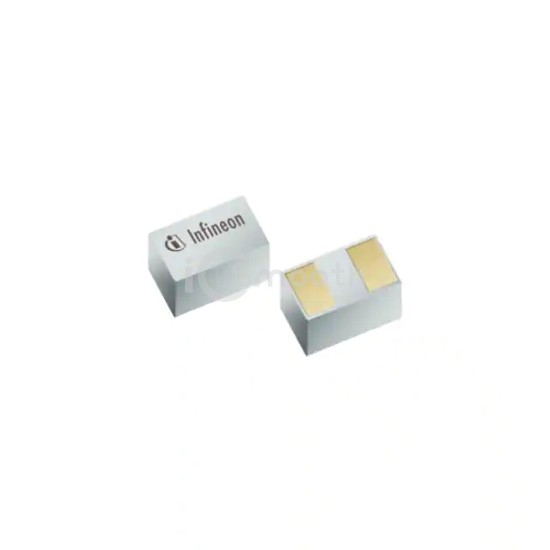

TVS DIODE 18VWM 20VC WLL-2-2

ESD144B1W0201E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 18VWM 20VC WLL-2-2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 510,364

Tiered Pricing USD

1+ $0.1300 —

10+ $0.0930 -28%

100+ $0.0380 -71%

500+ $0.0360 -72%

1,000+ $0.0310 -76%

2,000+ $0.0305 -77% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V
Voltage - Breakdown (Min)	18.5V
Voltage - Clamping (Max) @ Ipp	20V
Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)

Power - Peak Pulse	21W
Power Line Protection	Yes
Applications	HDMI, USB
Capacitance @ Frequency	0.2pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	WLL-2-2
