Name: ESD128B1W0201E6327XTSA1
Brand: Infineon Technologies
SKU: ESD128B1W0201E6327XTSA1
Price: 0.12 USD
Availability: InStock

REF: ESD128B1W0201E6327XTSA1 Infineon Technologies

ESD128B1W0201E6327XTSA1

Infineon Technologies

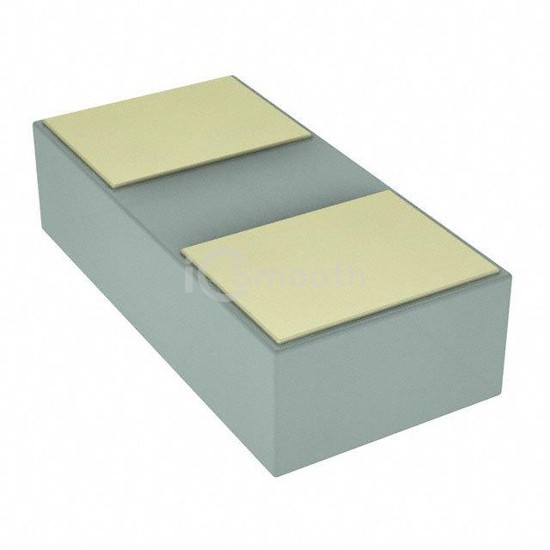

TVS DIODE 13VWM 18.5VC WLL-2-1

ESD128B1W0201E6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 13VWM 18.5VC WLL-2-1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 9,631

Tiered Pricing USD

1+ $0.1200 —

10+ $0.0880 -27%

100+ $0.0420 -65%

500+ $0.0370 -69%

1,000+ $0.0320 -73%

2,000+ $0.0315 -74%

5,000+ $0.0310 -74% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	13V (Max)
Voltage - Breakdown (Min)	20V
Voltage - Clamping (Max) @ Ipp	18.5V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	53W
Power Line Protection	No
Applications	RF Antenna
Capacitance @ Frequency	0.3pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	WLL-2-1
