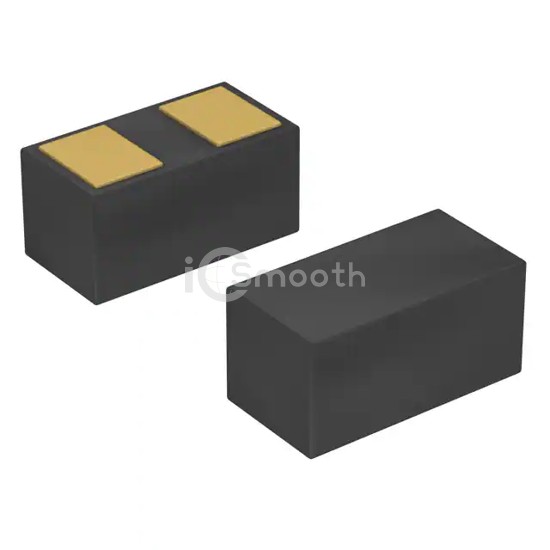

Name: ESD114U102ELSE6327XTSA1
Brand: Infineon Technologies
SKU: ESD114U102ELSE6327XTSA1
Price: 0.07 USD
Availability: InStock

REF: ESD114U102ELSE6327XTSA1 Infineon Technologies

ESD114U102ELSE6327XTSA1

Infineon Technologies

TVS DIODE 5.3VWM 28VC TSSLP-2-3

ESD114U102ELSE6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.3VWM 28VC TSSLP-2-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 683,165

Specifications

16 parameters

Product Status	Not For New Designs
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.3V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	28V (Typ)
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.4pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-3
