Name: ESD110B102ELSE6327XTSA1
Brand: Infineon Technologies
SKU: ESD110B102ELSE6327XTSA1
Price: 0.24 USD
Availability: InStock

REF: ESD110B102ELSE6327XTSA1 Infineon Technologies

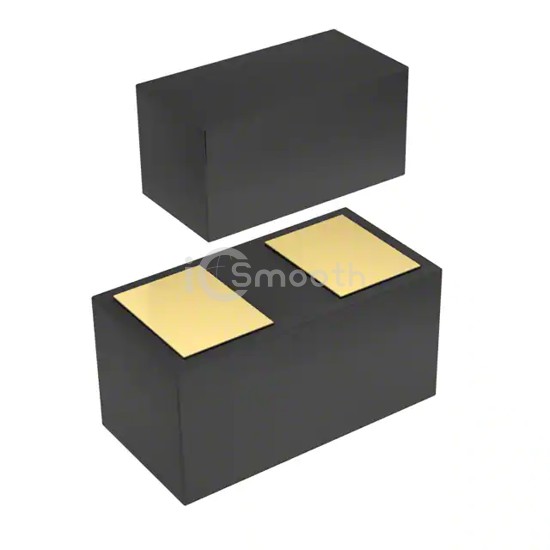

ESD110B102ELSE6327XTSA1

Infineon Technologies

TVS DIODE 18.5VWM 17VC TSSLP-2-4

ESD110B102ELSE6327XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 18.5VWM 17VC TSSLP-2-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 7,672

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18.5V (Max)
Voltage - Breakdown (Min)	20V
Voltage - Clamping (Max) @ Ipp	17V (Typ)
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	RF Antenna
Capacitance @ Frequency	0.3pF @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	PG-TSSLP-2-4
