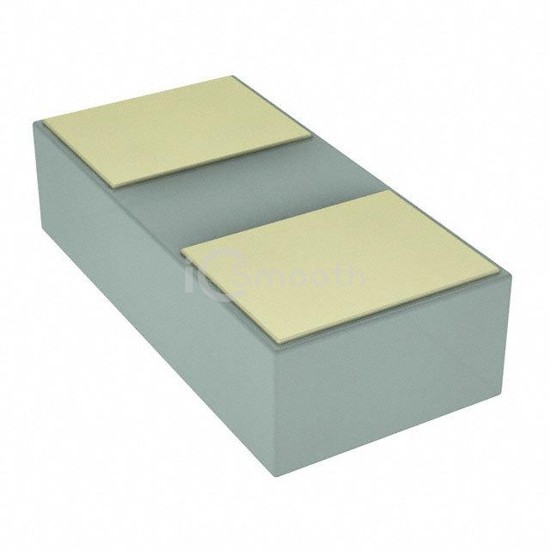

Name: ESD108B1CSP0201XTSA1
Brand: Infineon Technologies
SKU: ESD108B1CSP0201XTSA1
Price: 0.13 USD
Availability: InStock

REF: ESD108B1CSP0201XTSA1 Infineon Technologies

ESD108B1CSP0201XTSA1

Infineon Technologies

TVS DIODE 5.5VWM 41VC WLL-2-1

ESD108B1CSP0201XTSA1 is a TVS - Diodes manufactured by Infineon Technologies. TVS DIODE 5.5VWM 41VC WLL-2-1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 1,473,935

Tiered Pricing USD

1+ $0.1300 —

10+ $0.0930 -28%

100+ $0.0360 -72%

500+ $0.0340 -74%

1,000+ $0.0310 -76%

2,000+ $0.0305 -77%

5,000+ $0.0300 -77% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	9.5V (Typ)
Voltage - Clamping (Max) @ Ipp	41V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	27.5W
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.28pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	WLL-2-1
