DF80R07W1H5FPB11BPSA1

In Stock: 4,159

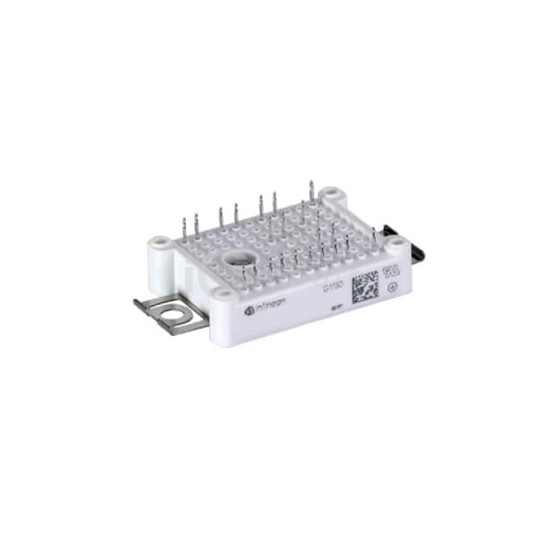

DF80R07W1H5FPB11BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: DF80R07W1H5FPB11BPSA1 Infineon Technologies
DF80R07W1H5FPB11BPSA1

Infineon Technologies

LOW POWER EASY

DF80R07W1H5FPB11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. LOW POWER EASY. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 4,159

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Configuration2 Independent
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)40 A
Power - Max0.2 W
Vce(on) (Max) @ Vge, Ic1.72V @ 15V, 20A
Current - Collector Cutoff (Max)12 µA
Input Capacitance (Cies) @ Vce2 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY1B-2
