DF600R12IP4DBOSA1

In Stock: 9

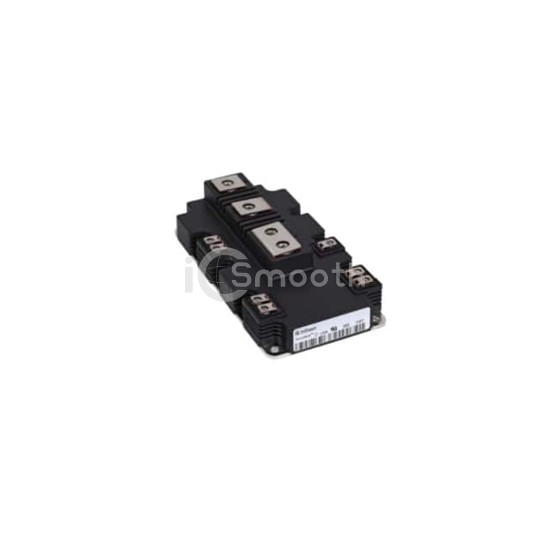

DF600R12IP4DBOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: DF600R12IP4DBOSA1 Infineon Technologies
DF600R12IP4DBOSA1

Infineon Technologies

IGBT MOD 1200V 600A 3350W

DF600R12IP4DBOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 600A 3350W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 600 A.

Datasheet Request a Quote

In Stock: 9

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)600 A
Power - Max3350 W
Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 600A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce37 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
