DF100R07W1H5FPB53BPSA2

In Stock: 10

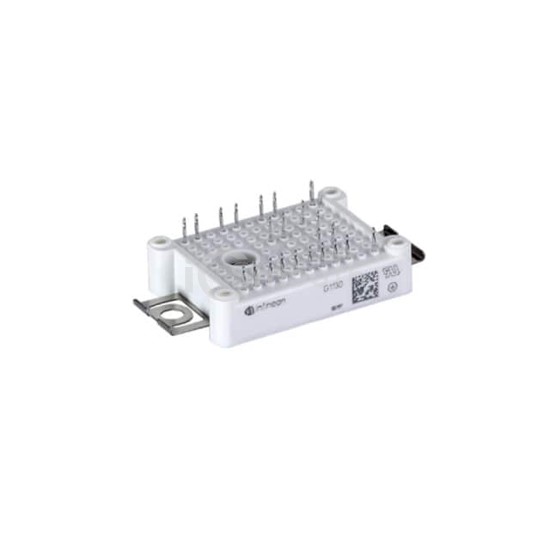

DF100R07W1H5FPB53BPSA2 - Infineon Technologies - Transistors - IGBTs - Modules
REF: DF100R07W1H5FPB53BPSA2 Infineon Technologies
DF100R07W1H5FPB53BPSA2

Infineon Technologies

IGBT MOD 650V 40A 20MW

DF100R07W1H5FPB53BPSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 650V 40A 20MW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 40 A.

Request a Quote

In Stock: 10

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Configuration2 Independent
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)40 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic1.55V @ 15V, 25A
Current - Collector Cutoff (Max)40 µA
Input Capacitance (Cies) @ Vce2.8 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
