DDB6U134N16RRBOSA1

In Stock: 4,591

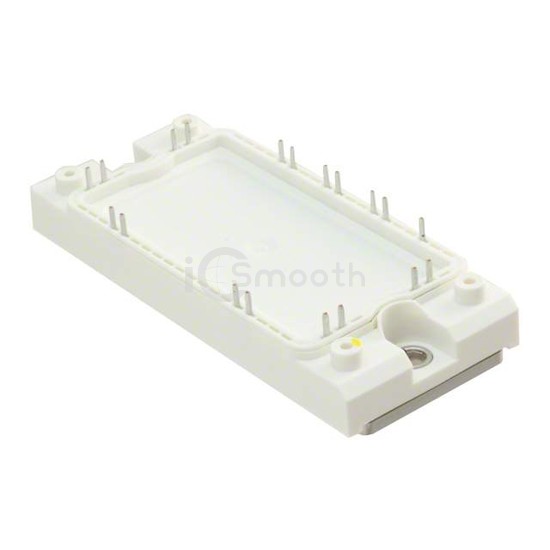

DDB6U134N16RRBOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: DDB6U134N16RRBOSA1 Infineon Technologies
DDB6U134N16RRBOSA1

Infineon Technologies

IGBT MOD 1600V 70A 500W

DDB6U134N16RRBOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1600V 70A 500W. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case Module, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 4,591

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1600 V
Current - Collector (Ic) (Max)70 A
Power - Max500 W
Vce(on) (Max) @ Vge, Ic2.75V @ 15V, 70A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce5.1 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
