CYBL10563-56LQXIT

In Stock: 2,489

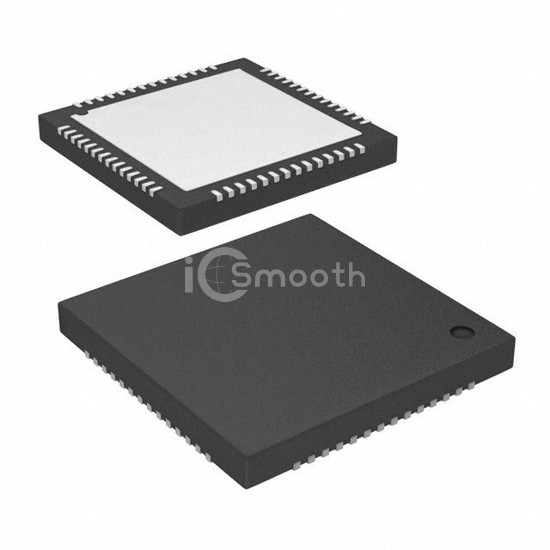

CYBL10563-56LQXIT - Infineon Technologies - RF Transceiver ICs
REF: CYBL10563-56LQXIT Infineon Technologies
CYBL10563-56LQXIT

Infineon Technologies

IC RF TXRX+MCU BLUETOOTH 56UFQFN

CYBL10563-56LQXIT is a RF Transceiver ICs manufactured by Infineon Technologies. IC RF TXRX+MCU BLUETOOTH 56UFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.8V ~ 5.5V, package / case 56-UFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,489

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v4.1
ModulationGFSK
Frequency2.4GHz
Data Rate (Max)1Mbps
Power - Output3dBm
Sensitivity-91dBm
Memory Size128kB Flash, 8kB ROM, 16kB SRAM
Serial InterfacesI²C, I²S, SPI, UART
GPIO36
Voltage - Supply1.8V ~ 5.5V
Current - Receiving16.4mA ~ 21.5mA
Current - Transmitting12.5mA ~ 20mA
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case56-UFQFN Exposed Pad
Supplier Device Package56-QFN (7x7)
