Name: BTS247ZE3062AATMA2
Brand: Infineon Technologies
SKU: BTS247ZE3062AATMA2
Price: 3.12 USD
Availability: InStock

REF: BTS247ZE3062AATMA2 Infineon Technologies

BTS247ZE3062AATMA2

Infineon Technologies

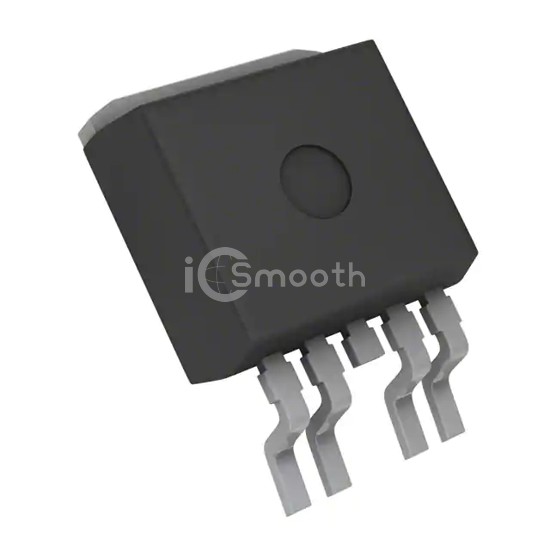

MOSFET N-CH 55V 33A TO263-5

BTS247ZE3062AATMA2 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 55V 33A TO263-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB.

Datasheet Request a Quote

In Stock: 8,978

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	18mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	90 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1730 pF @ 25 V
FET Feature	Temperature Sensing Diode
Power Dissipation (Max)	120W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-5-2
Package / Case	TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
