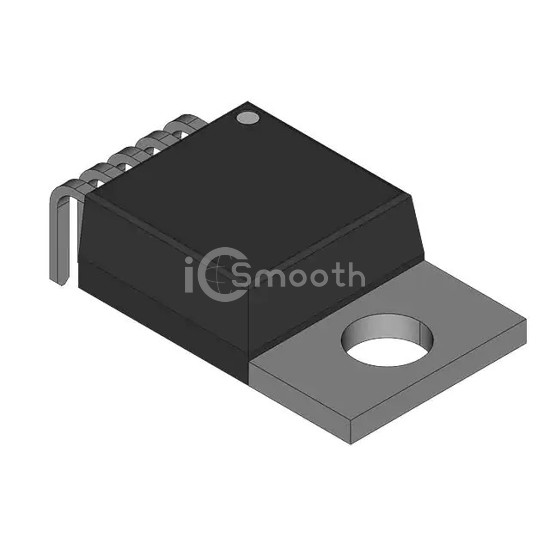

Name: BTS244ZE3062ANTMA1
Brand: Infineon Technologies
SKU: BTS244ZE3062ANTMA1
Price: 0.41 USD
Availability: InStock

REF: BTS244ZE3062ANTMA1 Infineon Technologies

BTS244ZE3062ANTMA1

Infineon Technologies

BTS244 - TEMPFET, AUTOMOTIVE LOW

BTS244ZE3062ANTMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. BTS244 - TEMPFET, AUTOMOTIVE LOW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB.

Datasheet Request a Quote

In Stock: 24,500

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	13mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	2V @ 130µA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2660 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	170W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-5-2
Package / Case	TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
