BSZ300N15NS5ATMA1

In Stock: 8,775

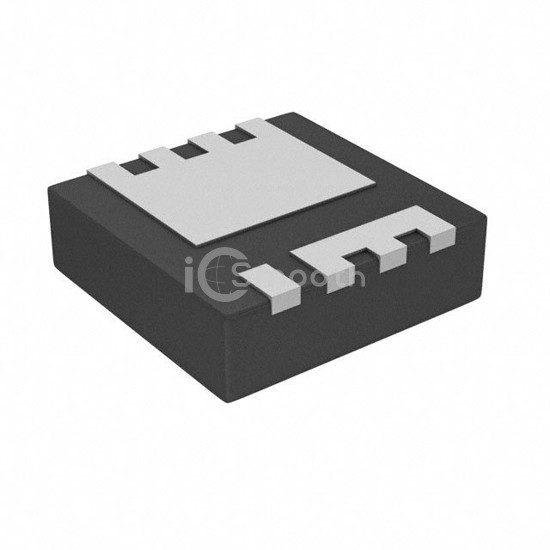

BSZ300N15NS5ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSZ300N15NS5ATMA1 Infineon Technologies
BSZ300N15NS5ATMA1

Infineon Technologies

MOSFET N-CH 150V 32A TSDSON

BSZ300N15NS5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 150V 32A TSDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,775

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs30mOhm @ 16A, 10V
Vgs(th) (Max) @ Id4.6V @ 32µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds950 pF @ 75 V
FET Feature-
Power Dissipation (Max)62.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSDSON-8-FL
Package / Case8-PowerTDFN
