Name: BSZ0911LSATMA1
Brand: Infineon Technologies
SKU: BSZ0911LSATMA1
Availability: InStock

REF: BSZ0911LSATMA1 Infineon Technologies

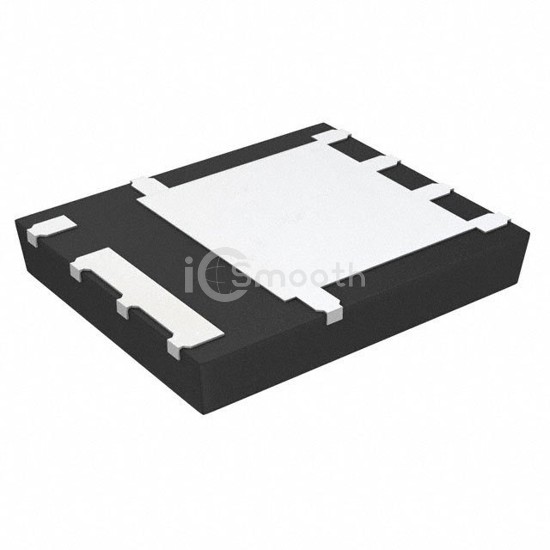

BSZ0911LSATMA1

MOSFET N-CH 30V 12A/40A TSDSON

BSZ0911LSATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 12A/40A TSDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,372

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	670 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8 FL
Package / Case	8-PowerTDFN
