Name: BSZ0905PNSATMA1
Brand: Infineon Technologies
SKU: BSZ0905PNSATMA1
Availability: InStock

REF: BSZ0905PNSATMA1 Infineon Technologies

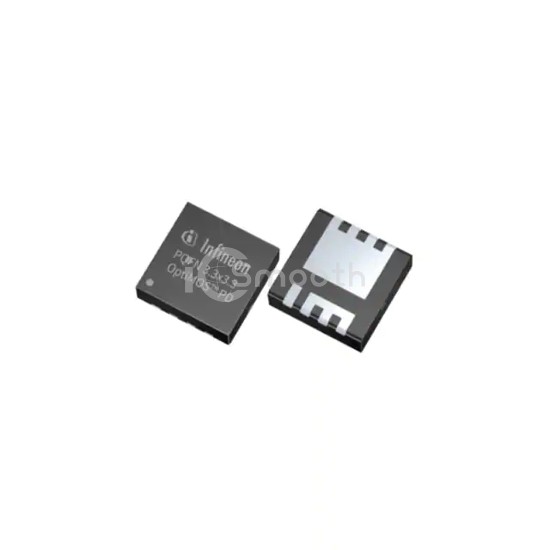

BSZ0905PNSATMA1

MOSFET P-CH 30V 40A TDSON-8

BSZ0905PNSATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 30V 40A TDSON-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,521

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	8.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	1.9V @ 105µA
Gate Charge (Qg) (Max) @ Vgs	43.2 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	3190 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	69W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8
Package / Case	8-PowerTDFN
