BSZ0803LSATMA1

In Stock: 4,981

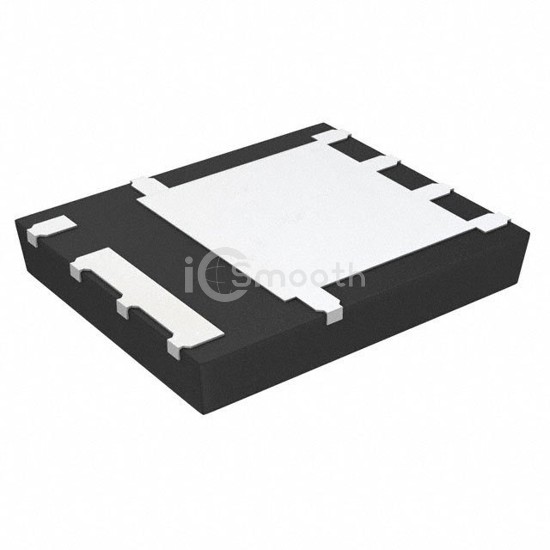

BSZ0803LSATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSZ0803LSATMA1 Infineon Technologies
BSZ0803LSATMA1

Infineon Technologies

MOSFET N-CH 100V 9A/40A TSDSON

BSZ0803LSATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 9A/40A TSDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,981

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C9A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs14.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.3V @ 23µA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1300 pF @ 50 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 52W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8 FL
Package / Case8-PowerTDFN
