Name: BSZ070N08LS5ATMA1
Brand: Infineon Technologies
SKU: BSZ070N08LS5ATMA1
Price: 1.88 USD
Availability: InStock

REF: BSZ070N08LS5ATMA1 Infineon Technologies

BSZ070N08LS5ATMA1

Infineon Technologies

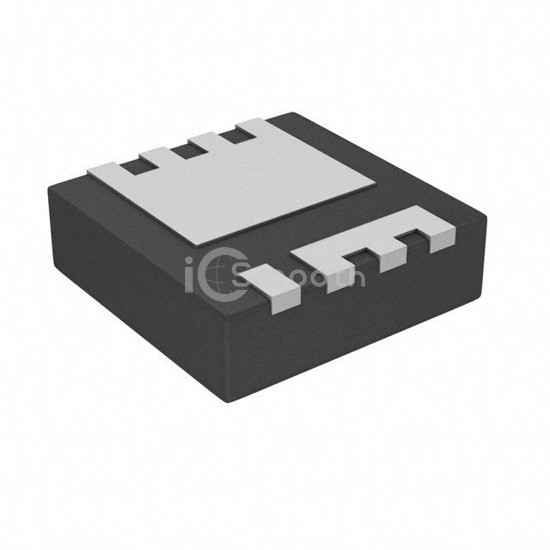

MOSFET N-CH 80V 40A TSDSON

BSZ070N08LS5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 40A TSDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,904

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 36µA
Gate Charge (Qg) (Max) @ Vgs	5 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2340 pF @ 40 V
FET Feature	Standard
Power Dissipation (Max)	69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-8-FL
Package / Case	8-PowerTDFN
