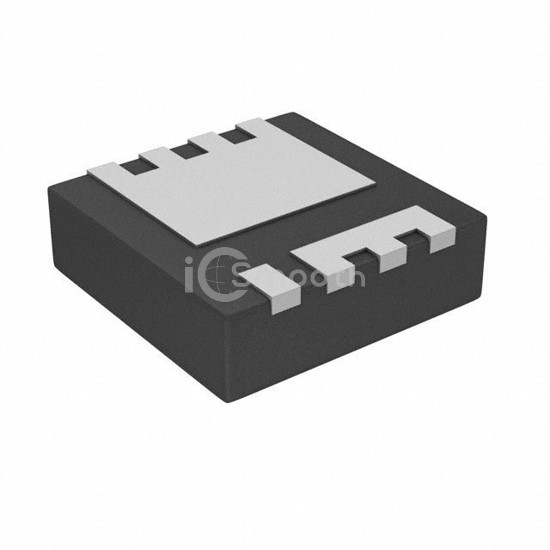

Name: BSZ0589NSATMA1
Brand: Infineon Technologies
SKU: BSZ0589NSATMA1
Price: 1.22 USD
Availability: InStock

REF: BSZ0589NSATMA1 Infineon Technologies

BSZ0589NSATMA1

Infineon Technologies

MOSFET N-CH 30V 17A TSDSON

BSZ0589NSATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 17A TSDSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,877

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	17A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	950 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-8-FL
Package / Case	8-PowerTDFN
