Name: BSZ042N04NSGATMA1
Brand: Infineon Technologies
SKU: BSZ042N04NSGATMA1
Availability: InStock

REF: BSZ042N04NSGATMA1 Infineon Technologies

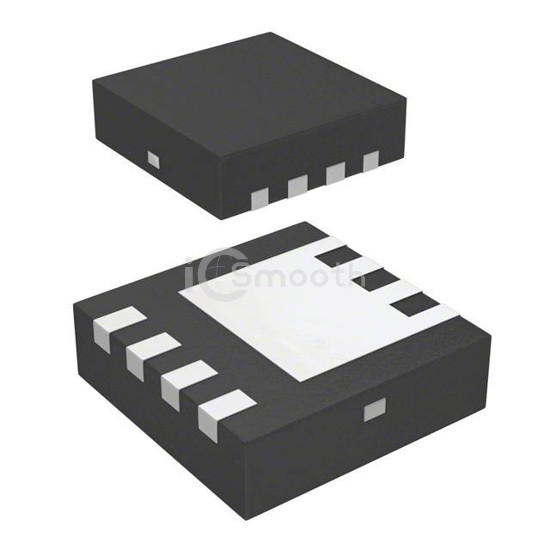

BSZ042N04NSGATMA1

MOSFET N-CH 40V 40A TSDSON-8

BSZ042N04NSGATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 40V 40A TSDSON-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,632

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 36µA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3700 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 69W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TSDSON-8
Package / Case	8-PowerVDFN
