Name: BSS192PE6327T
Brand: Infineon Technologies
SKU: BSS192PE6327T
Availability: InStock

REF: BSS192PE6327T Infineon Technologies

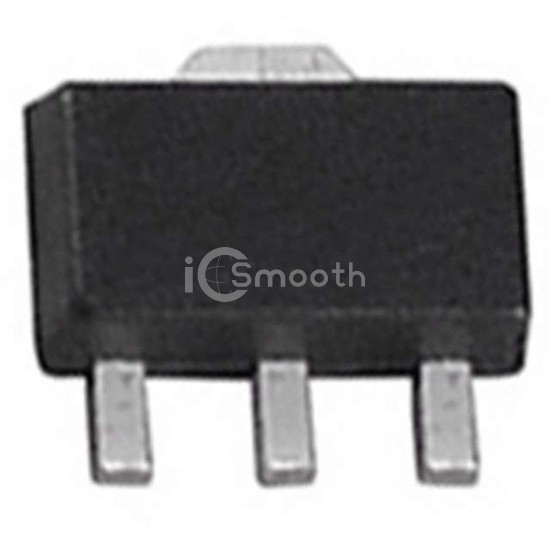

BSS192PE6327T

MOSFET P-CH 250V 190MA SOT89

BSS192PE6327T is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 250V 190MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 6,182

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	190mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.8V, 10V
Rds On (Max) @ Id, Vgs	12Ohm @ 190mA, 10V
Vgs(th) (Max) @ Id	2V @ 130µA
Gate Charge (Qg) (Max) @ Vgs	6.1 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	104 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT89
Package / Case	TO-243AA
