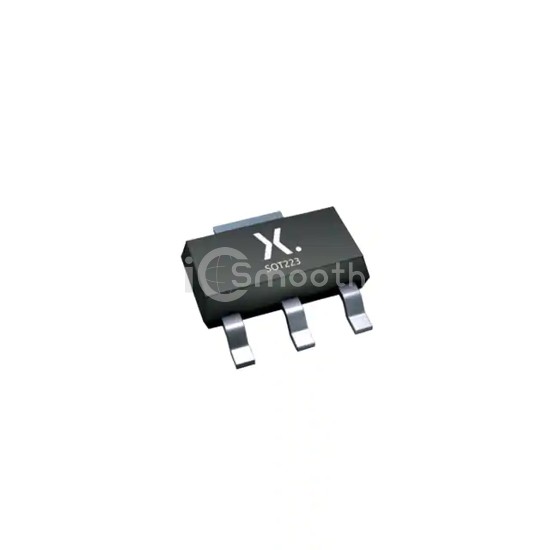

Name: BSS119NH6433XTMA1
Brand: Infineon Technologies
SKU: BSS119NH6433XTMA1
Availability: InStock

REF: BSS119NH6433XTMA1 Infineon Technologies

BSS119NH6433XTMA1

MOSFET N-CH 100V 190MA SOT23-3

BSS119NH6433XTMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 190MA SOT23-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 3,960

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	190mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6Ohm @ 190mA, 10V
Vgs(th) (Max) @ Id	2.3V @ 13µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	20.9 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
