Name: BSR315PL6327HTSA1
Brand: Infineon Technologies
SKU: BSR315PL6327HTSA1
Availability: InStock

REF: BSR315PL6327HTSA1 Infineon Technologies

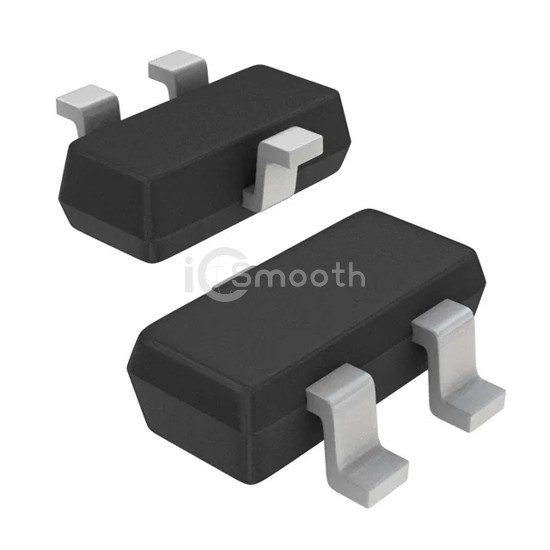

BSR315PL6327HTSA1

MOSFET P-CH 60V 620MA SC59

BSR315PL6327HTSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET P-CH 60V 620MA SC59. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 6,757

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	620mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	800mOhm @ 620mA, 10V
Vgs(th) (Max) @ Id	2V @ 160µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	176 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SC59-3
Package / Case	TO-236-3, SC-59, SOT-23-3
