Name: BSO613SPVGXUMA1
Brand: Infineon Technologies
SKU: BSO613SPVGXUMA1
Price: 1.29 USD
Availability: InStock

REF: BSO613SPVGXUMA1 Infineon Technologies

BSO613SPVGXUMA1

Infineon Technologies

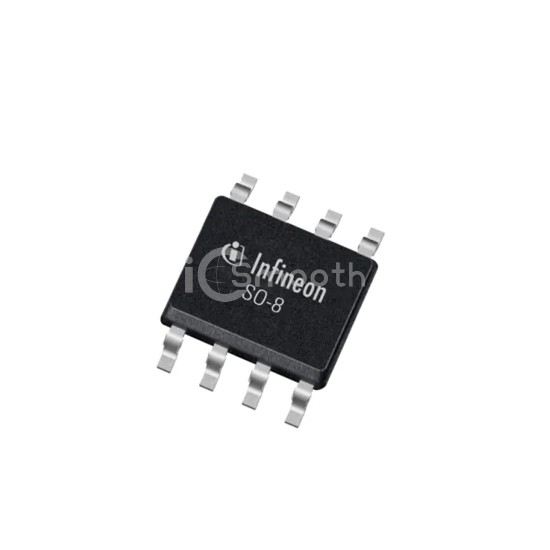

MOSFET N/P-CH 8-SOIC

BSO613SPVGXUMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N/P-CH 8-SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,599

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3.44A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	130mOhm @ 3.44A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	875 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-DSO-8-6
Package / Case	8-SOIC (0.154", 3.90mm Width)
