Name: BSM50GB60DLCHOSA1
Brand: Infineon Technologies
SKU: BSM50GB60DLCHOSA1
Availability: InStock

REF: BSM50GB60DLCHOSA1 Infineon Technologies

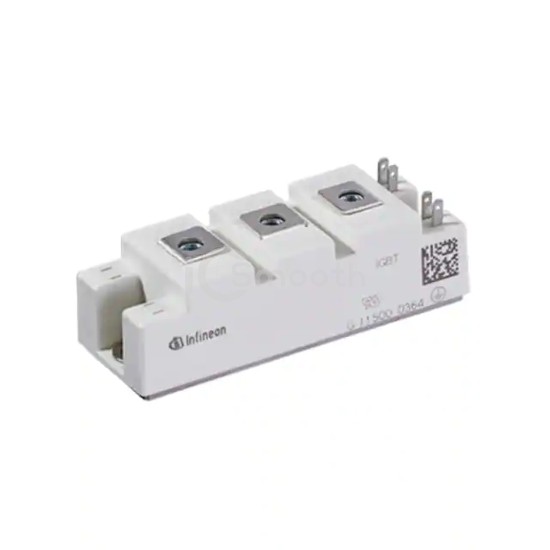

BSM50GB60DLCHOSA1

IGBT MODULE 600V 75A 280W

BSM50GB60DLCHOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 600V 75A 280W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 2,232

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	75 A
Power - Max	280 W
Vce(on) (Max) @ Vge, Ic	2.45V @ 15V, 50A
Current - Collector Cutoff (Max)	500 µA

Input Capacitance (Cies) @ Vce	2.2 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
