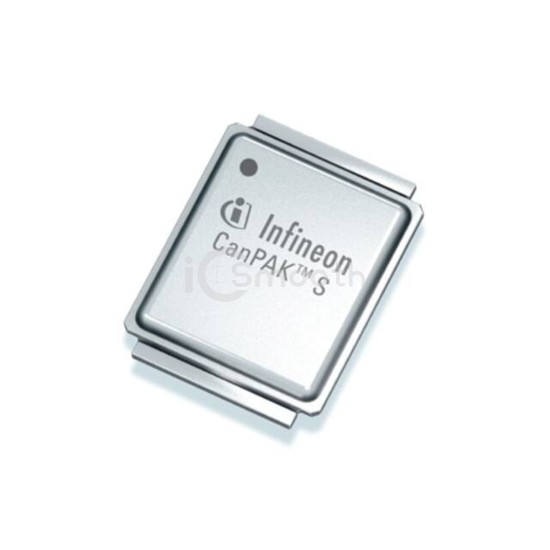

Name: BSF450NE7NH3XUMA1
Brand: Infineon Technologies
SKU: BSF450NE7NH3XUMA1
Price: 1.08 USD
Availability: InStock

REF: BSF450NE7NH3XUMA1 Infineon Technologies

BSF450NE7NH3XUMA1

Infineon Technologies

MOSFET N-CH 75V 5A/15A 2WDSON

BSF450NE7NH3XUMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 75V 5A/15A 2WDSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 3-WDSON.

Datasheet Request a Quote

In Stock: 4,490

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Rds On (Max) @ Id, Vgs	45mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	3.5V @ 8µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	390 pF @ 37.5 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 18W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MG-WDSON-2, CanPAK M™
Package / Case	3-WDSON
