Name: BSF083N03LQ G
Brand: Infineon Technologies
SKU: BSF083N03LQ G
Availability: InStock

REF: BSF083N03LQ G Infineon Technologies

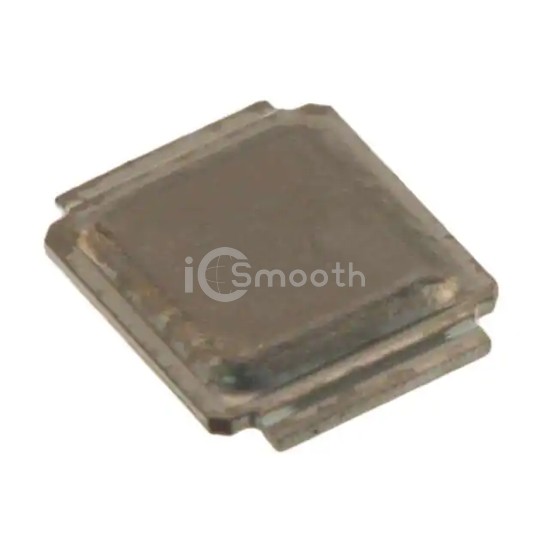

BSF083N03LQ G

MOSFET N-CH 30V 13A/53A 2WDSON

BSF083N03LQ G is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 30V 13A/53A 2WDSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 3-WDSON.

Datasheet Request a Quote

In Stock: 6,504

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 53A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 36W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MG-WDSON-2, CanPAK M™
Package / Case	3-WDSON
