Name: BSD816SNH6327XTSA1
Brand: Infineon Technologies
SKU: BSD816SNH6327XTSA1
Availability: InStock

REF: BSD816SNH6327XTSA1 Infineon Technologies

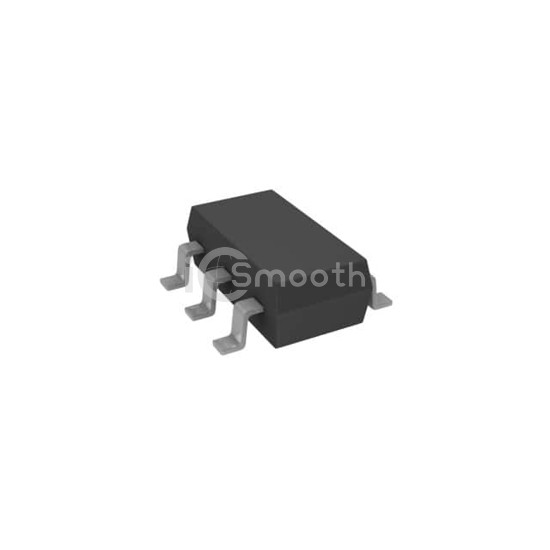

BSD816SNH6327XTSA1

MOSFET N-CH 20V 1.4A SOT363-6

BSD816SNH6327XTSA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 20V 1.4A SOT363-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 8,135

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 2.5V
Rds On (Max) @ Id, Vgs	160mOhm @ 1.4A, 2.5V
Vgs(th) (Max) @ Id	0.95V @ 3.7µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 2.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	180 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT363-6
Package / Case	6-VSSOP, SC-88, SOT-363
