BSC220N20NSFDATMA1

In Stock: 5,707

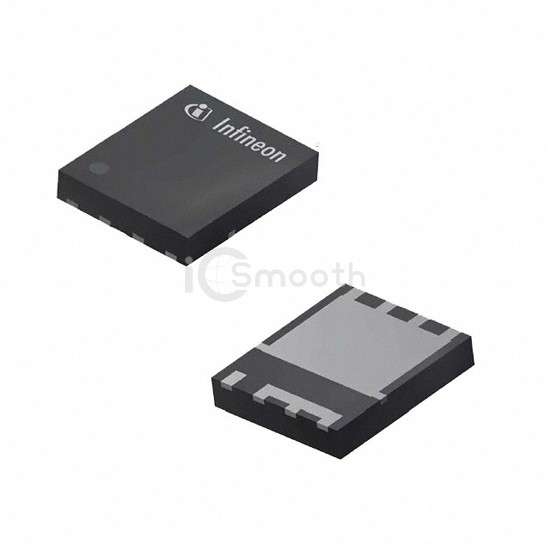

BSC220N20NSFDATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSC220N20NSFDATMA1 Infineon Technologies
BSC220N20NSFDATMA1

Infineon Technologies

MOSFET N-CH 200V 52A TSON-8

BSC220N20NSFDATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 200V 52A TSON-8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,707

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs22mOhm @ 52A, 10V
Vgs(th) (Max) @ Id4V @ 137µA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3680 pF @ 100 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSON-8-3
Package / Case8-PowerTDFN
