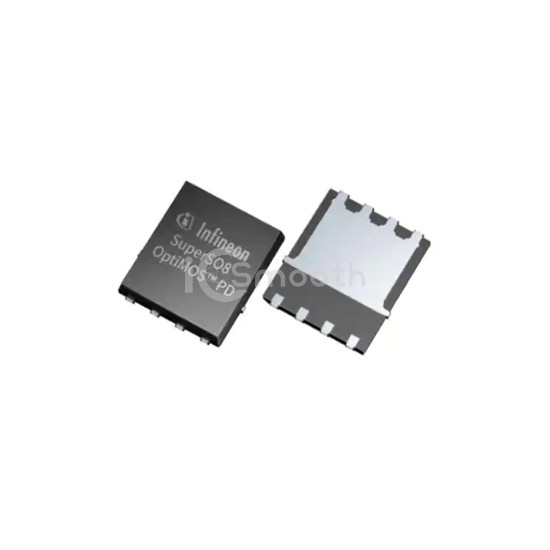

Name: BSC074N15NS5ATMA1
Brand: Infineon Technologies
SKU: BSC074N15NS5ATMA1
Price: 5.88 USD
Availability: InStock

REF: BSC074N15NS5ATMA1 Infineon Technologies

BSC074N15NS5ATMA1

Infineon Technologies

MOSFET N-CH 150V 114A TSON-8-3

BSC074N15NS5ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 150V 114A TSON-8-3. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 6,279

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	114A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	7.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4.6V @ 136µA
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4000 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	214W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	PG-TSON-8-3
Package / Case	8-PowerTDFN
