BSC070N10NS5SCATMA1

In Stock: 6,167

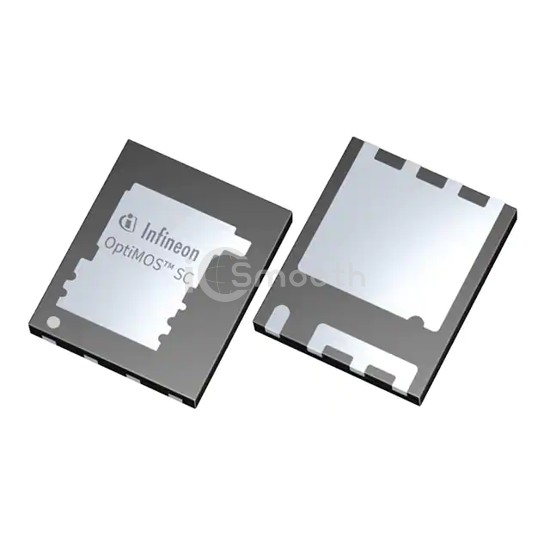

BSC070N10NS5SCATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: BSC070N10NS5SCATMA1 Infineon Technologies
BSC070N10NS5SCATMA1

Infineon Technologies

MOSFET N-CH 100V 14A/82A 8SWSON

BSC070N10NS5SCATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 14A/82A 8SWSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 6,167

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 82A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs7mOhm @ 40A, 10V
Vgs(th) (Max) @ Id3.8V @ 50µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2700 pF @ 50 V
FET Feature-
Power Dissipation (Max)3W (Ta), 100W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-WSON-8-2
Package / Case8-PowerWDFN
